Introduction

Here are some essential commands that can be helpful for debugging network-related issues in Linux environments, along with common scenarios for their use.

Docker Image

I have created a public, multiplatform Docker image that includes all the necessary tools.

It is available on Docker Hub.

docker run -it amit0myth/networking-toolset:v2 sh

# Use Alpine as the base image
FROM alpine:latest

# Install necessary packages
RUN apk update && apk add --no-cache \
    iproute2  \
    net-tools \
    iputils \
    traceroute \
    lsof \
    tcpdump \
    curl \
    wget  \
    busybox-extras \
    netcat-openbsd \
    nmap \
    bind-tools \
    iperf3 \
    iptables

# Default command
CMD ["sh"]

Commands

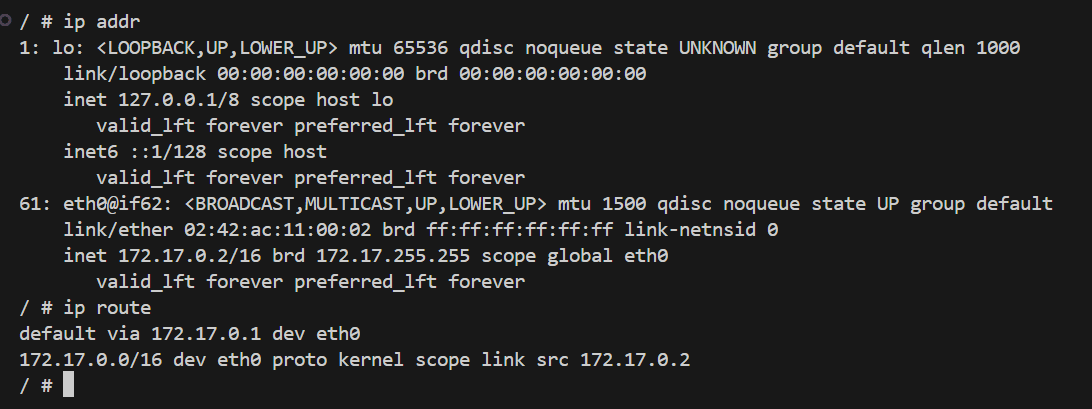

• ip

  The ip command is used to manage network interfaces, routing, and tunnels. It can display network configurations such as IP addresses, manage routes, and configure network devices.

  • Scenario 1: A computer can't access other devices on the same network. Use ip addr show to check if the network interface has a valid IP address and confirm if it’s active (up).
  • Scenario 2: The system is unable to access the internet due to routing issues. Use ip route to check if the default gateway is correctly set and routes are properly configured.

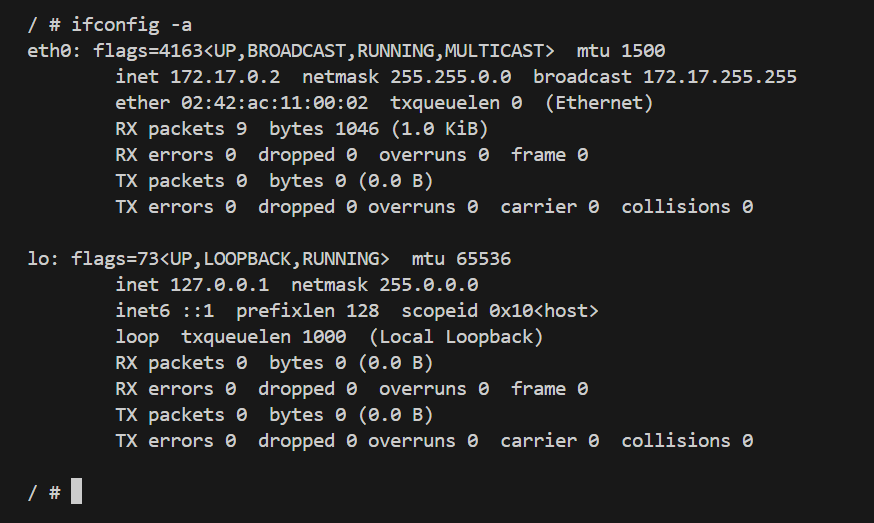

• ifconfig

  ifconfig is used to configure or display network interface parameters (IP address, subnet mask, etc.). It’s mostly deprecated and replaced by the ip command but still used in some systems.

  • Scenario 1: A server isn't responding to network requests. Use ifconfig to verify whether the network interface is up and has a valid IP address.
  • Scenario 2: A network card is having issues connecting to the local network. Use ifconfig eth0 down followed by ifconfig eth0 up to restart the interface and reinitialize the connection.

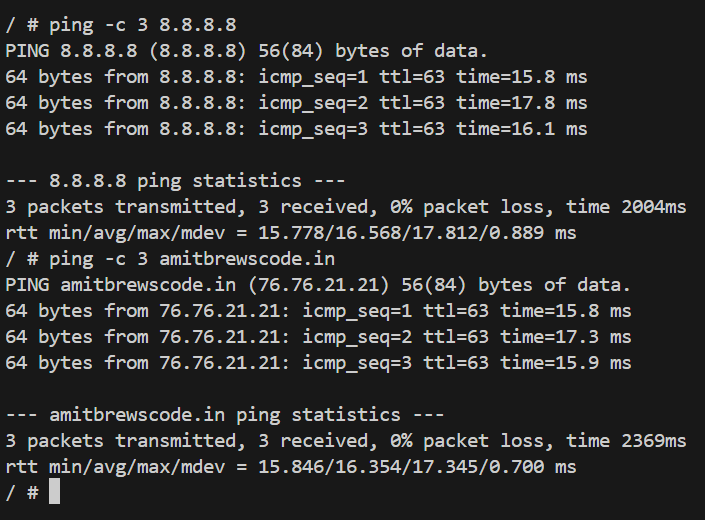

• ping

  ping sends ICMP echo requests to a target to check network connectivity and response time. It's used for testing the reachability of a host on an IP network.

  • Scenario 1: A user can’t access a website. Use ping <hostname> to check if the server is reachable and if any packet loss occurs.
  • Scenario 2: A machine can't connect to the local network. Use ping <gateway IP> to test if the machine can communicate with the local router.

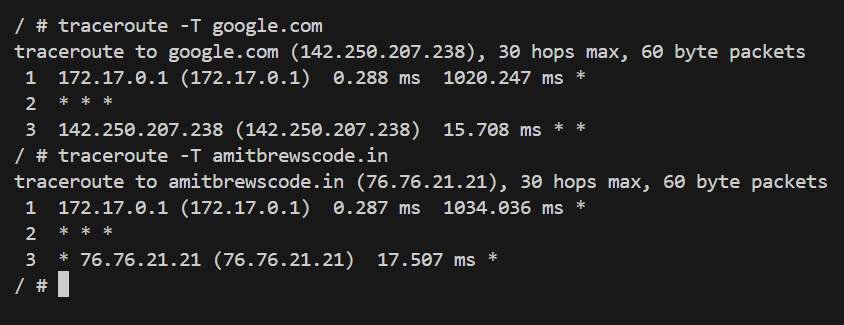

• traceroute

  traceroute shows the path packets take to reach a destination, displaying each hop and the delay between them. It helps identify where network delays or failures occur.

  • Scenario 1: A website is accessible but very slow. Use traceroute <hostname> to identify which hop in the network route is causing the delay.
  • Scenario 2: You’re unable to reach a remote server. Use traceroute <IP address> to check where the connection is failing, such as a specific router or firewall.

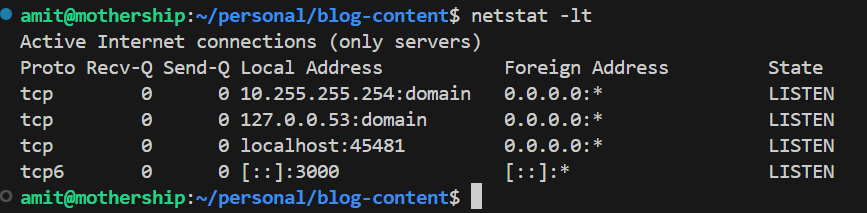

• netstat

  netstat displays active network connections, listening ports, routing tables, and interface statistics. It’s helpful for diagnosing open connections and services.

  • Scenario 1: A web server isn’t responding on port 80. Use netstat -tuln to verify if the web server is listening on port 80 and accepting connections.
  • Scenario 2: A machine is suspected of having a malicious process sending data. Use netstat -p to identify active connections and associate them with running processes.

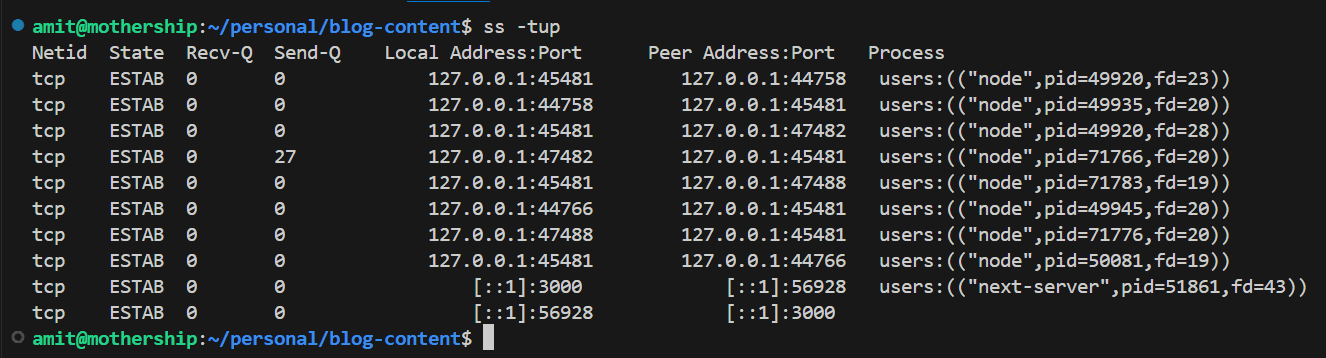

• ss

  ss is a more modern and faster alternative to netstat. It provides detailed information about network sockets and connections.

  • Scenario 1: A service on port 443 (HTTPS) is not responding. Use ss -ltn to check if port 443 is open and being listened to by the correct service.
  • Scenario 2: The system has too many established connections. Use ss -s to summarize socket connections and identify potential bottlenecks or overuse.

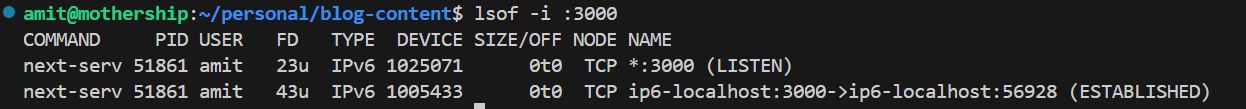

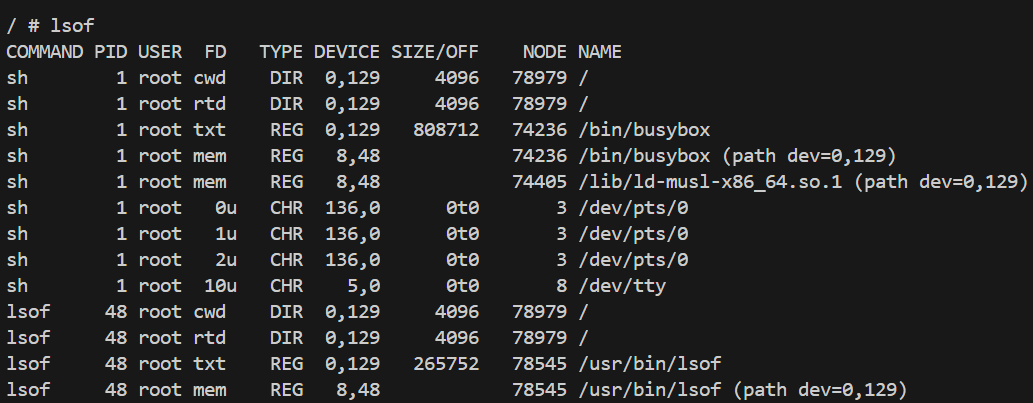

• lsof

  lsof lists open files, including network files (sockets). It’s commonly used to find which process is using a specific port.

  • Scenario 1: Port 8080 is in use, and you need to find which process is occupying it. Use lsof -i :8080 to see the process ID.
  • Scenario 2: A service is failing to start because another process is using its port. Use lsof -i :80 to identify the conflicting process.

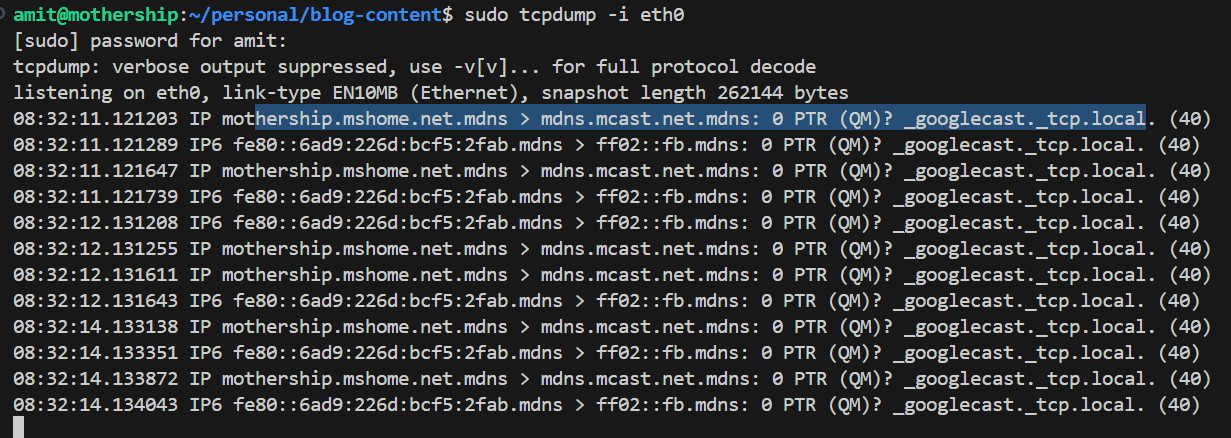

• tcpdump

  tcpdump is a packet analyzer that captures and analyzes network traffic. It’s useful for monitoring packets on a network interface and diagnosing connectivity issues.

  • Scenario 1: You suspect a Denial-of-Service (DoS) attack on your server. Use tcpdump -i eth0 to capture incoming traffic and analyze the source of suspicious activity.
  • Scenario 2: A specific application is failing to communicate with an external API. Use tcpdump -i eth0 port 443 to capture and examine HTTPS traffic between your server and the API.

• curl

  curl transfers data from or to a server using various protocols like HTTP, HTTPS, FTP, and more. It's commonly used for testing API endpoints or downloading files.

  • Scenario 1: You need to verify if an API endpoint is responsive. Use curl http://api.example.com to send a request and check the response.
  • Scenario 2: A user reports issues with a website’s SSL certificate. Use curl -v https://example.com to see detailed SSL handshake information and diagnose certificate problems.

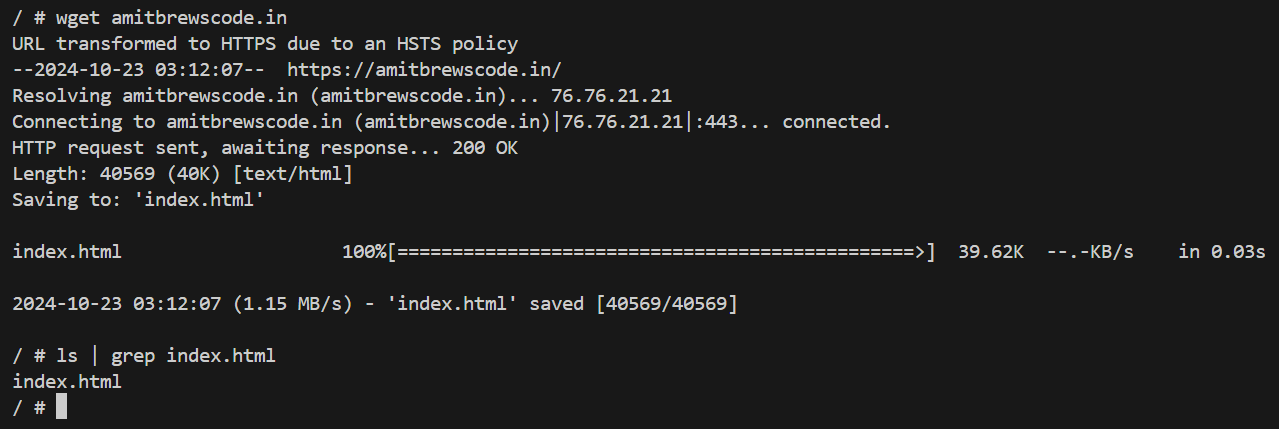

• wget

  wget is used to download files from the web via HTTP, HTTPS, and FTP. It supports recursive downloading and is often used in scripts for automated file downloads.

  • Scenario 1: Users report slow download speeds from a server. Use wget http://example.com/file.zip to test the download and compare the speed.
  • Scenario 2: You need to troubleshoot whether a website is available. Use wget http://example.com to download the page and verify availability.

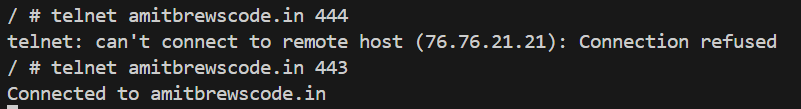

• telnet

  telnet connects to remote devices via raw TCP connections, typically used to troubleshoot if a port is open on a remote host.

  • Scenario 1: A web server is unresponsive on port 80. Use telnet <hostname> 80 to manually test if the port is open and accepting connections.
  • Scenario 2: An email server isn’t working on port 25 (SMTP). Use telnet <hostname> 25 to test if the mail server is accepting SMTP connections.

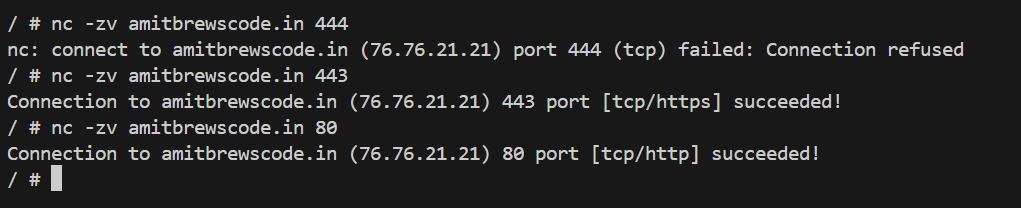

• netcat (nc)

  netcat (nc) is a networking utility used for port scanning, creating raw connections, and testing services. It can also send or receive data over TCP or UDP.

  • Scenario 1: A service on port 8080 isn’t responding. Use nc -zv <hostname> 8080 to test if the port is open and accepting connections.
  • Scenario 2: You need to transfer a file between two machines over the network. Use nc to establish a raw connection and send the file through it.

• nmap

  nmap is a network scanner used to discover hosts, open ports, and services running on a network. It can also perform vulnerability assessments.

  • Scenario 1: A remote server is not responding. Use nmap <hostname> to scan the server’s ports and see which services are running.
  • Scenario 2: You suspect a firewall is blocking specific services. Use nmap -Pn <hostname> to perform a stealth scan and check for any blocked ports.

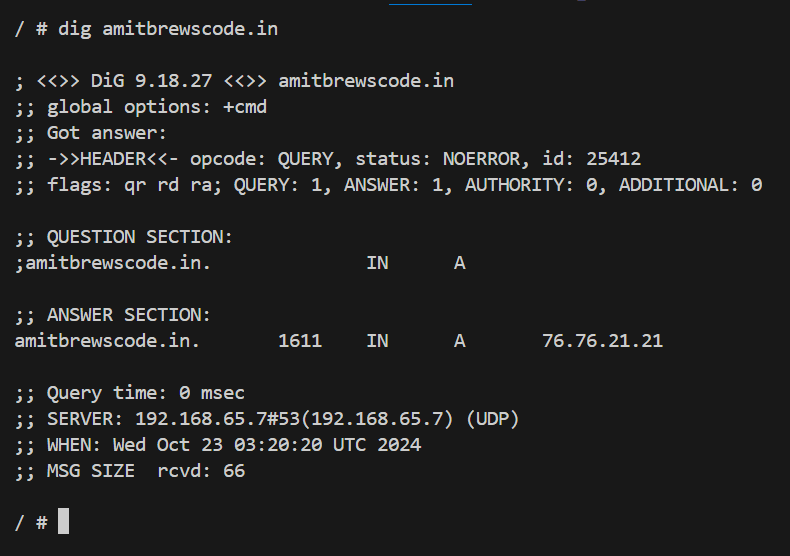

• dig

  dig is a DNS lookup tool used to query DNS servers and retrieve DNS records like A, MX, or TXT records. It’s useful for troubleshooting DNS-related issues.

  • Scenario 1: Users can’t access a website. Use dig example.com to check if the domain resolves to the correct IP address and ensure DNS resolution is working.
  • Scenario 2: Email delivery is failing. Use dig MX example.com to verify if the mail server records are correctly configured.

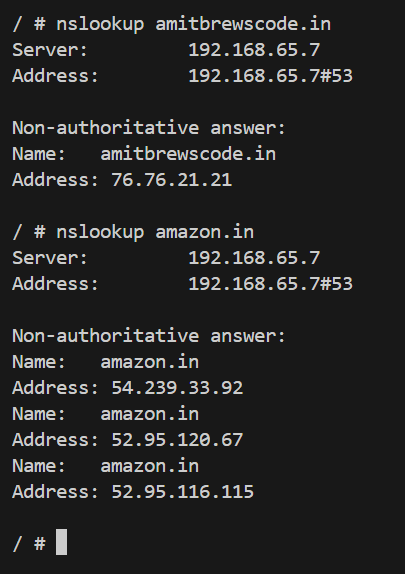

• nslookup

  nslookup is a simpler tool for querying DNS servers to resolve domain names into IP addresses. It can query different DNS types like A, MX, and NS records.

  • Scenario 1: A website isn’t reachable. Use nslookup example.com to check if DNS is resolving the domain name to the correct IP address.
  • Scenario 2: DNS resolution issues are suspected in a network. Use nslookup with a specific DNS server (e.g., nslookup example.com 8.8.8.8) to test DNS propagation.

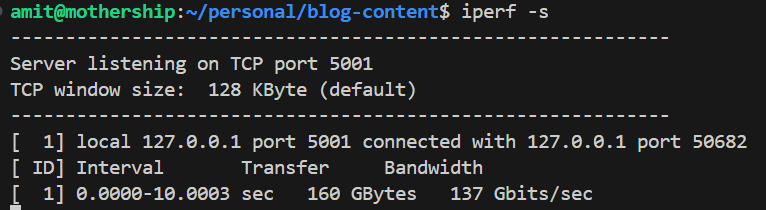

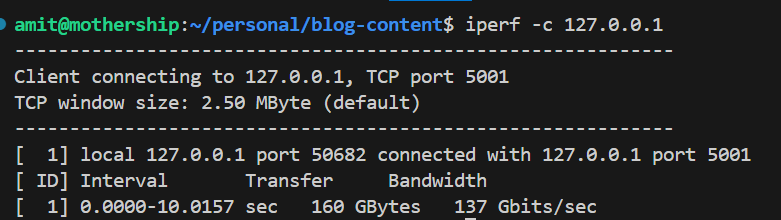

• iperf

  iperf is a tool used to measure network bandwidth between two hosts. It can assess network throughput, packet loss, and jitter.

  • Scenario 1: Users report slow network speeds between two locations. Use iperf -c <server> to test the available bandwidth between the two points.
  • Scenario 2: A network upgrade has been performed, and you want to test the new network’s performance. Use iperf to measure the bandwidth between devices in different network segments.

• iptables

  iptables is a Linux utility for managing firewall rules, allowing you to filter and control network traffic. It’s used to allow or block incoming and outgoing traffic.

  • Scenario 1: A service isn't accessible because it's being blocked by the firewall. Use iptables -L to list all firewall rules and identify blocking rules.
  • Scenario 2: You want to block all incoming traffic except SSH. Use iptables -A INPUT -p tcp --dport 22 -j ACCEPT followed by a rule to drop other traffic.

• firewalld

  firewalld is a firewall management tool that offers a more flexible way to manage firewall rules compared to iptables, with zones and runtime configurations.

  • Scenario 1: A new service is being blocked by the firewall. Use firewall-cmd --list-all to view the firewall rules in the active zone and see if it needs to be allowed.
  • Scenario 2: After adding a new server, users can't access it. Use firewall-cmd --add-port=8080/tcp --permanent to open port 8080 in the firewall and allow access.
