Introduction

Load testing is a type of software testing that evaluates a system's performance under expected and peak load conditions. The goal is to identify the system's capacity limits, potential bottlenecks, and its ability to handle a specific volume of concurrent users or transactions.

There are multiple load testing tools available in the market, but Locust has caught my attention due to its numerous configuration options and its adaptability for use by multiple actors and it is OSS. It can be integrated into your CI/CD pipeline through the command line interface (CLI) and can be utilized by the QA team, providing them with a user-friendly interface featuring extensive reporting and visualization options. The only caveat is that you need to have a basic understanding of Python.

I have created a small Node server and a Locust repository, which we will use in this article. Both of these can be found here.

• Installation
• Basics
• Advance

Installation

Locust gets installed as a Python pip package. Just run:

• pip3 install locust
• locust -V

Basics

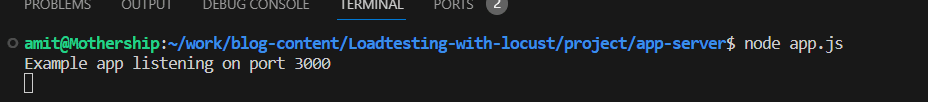

• Let's start by launching a small Node server on which we will perform tests. Clone this repository and, inside Loadtesting-with-locust/project, install packages with npm install. Then, run node app.js to start the server.



• Locust needs a Python file where we write basic classes and functions that will be interpreted as a test suite. A simple version of the file would look something like the one below:

from locust import FastHttpUser, task

class RootTest(FastHttpUser):
    @task
    def home(self):
        self.client.get("/")

from locust import FastHttpUser, task

For the Locust Python package, we are importing FastHttpUser and User.

The FastHttpUser call provides us with an instance of HttpSession, which has the actual definition of the get, post, etc. functions that we use.

The @task is a decorator that we put before a function to let the system know it's a test. Functions without it are just treated as helper functions.

class RootTest(FastHttpUser):
  @task
  def home(self):
      self.client.get("/")

Here, RootTest inherits from the FastHttpUser class and is actually a test suite. We can add multiple test executions in one suite. For example, here, we have a single test that makes a GET call on the root.

• Now to perform this test we have two ways,
  • UI

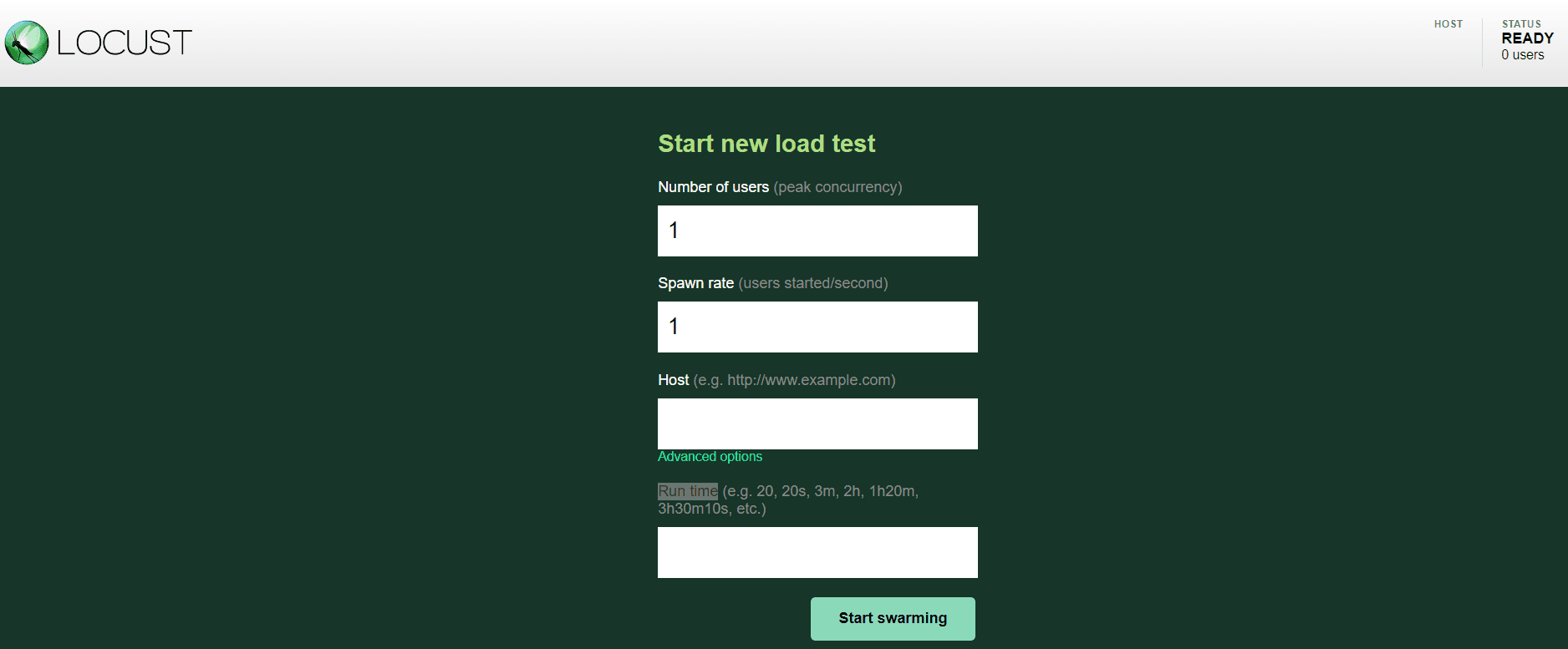

    Locust spins up a web server and serves a UI on which we can input the domain, number of users (peak concurrency), spawn rate (frequency with which users will increase, for example, we can increase 5 users every 1 second), and the runtime of the test

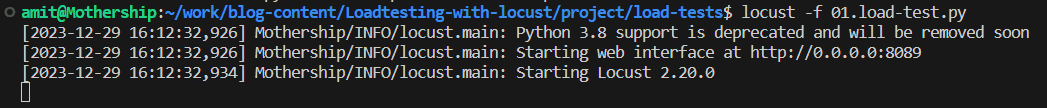

    Run Command: locust -f 01.load-test.py Here, with the -f option, we provide it with the test configuration we wrote.




    Let's run it for a peak load of 50 concurrent users and step up by 10 users per second for a duration of 30 seconds. Our host address will be that of the Node server we started: http://localhost:3000.

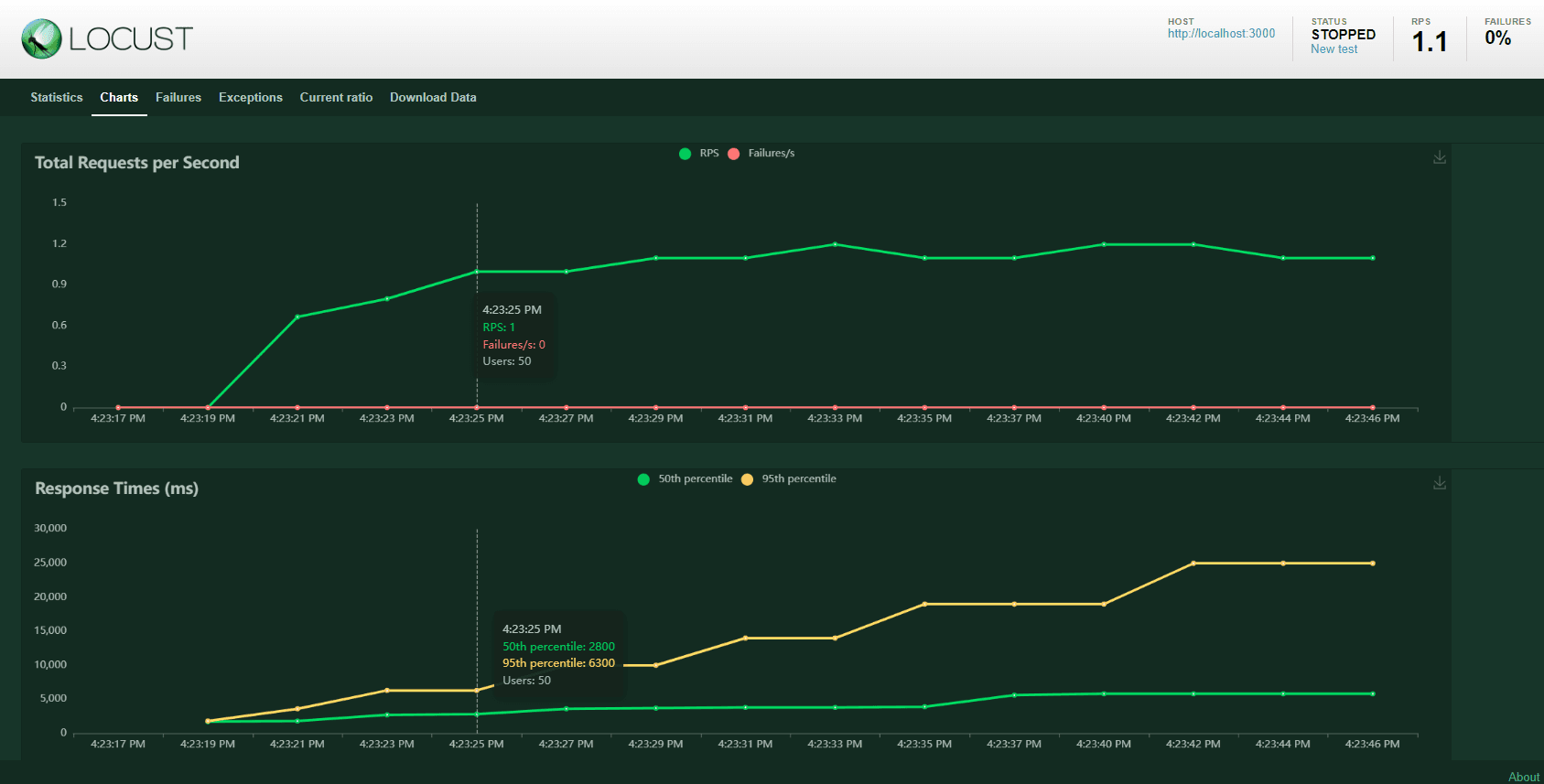

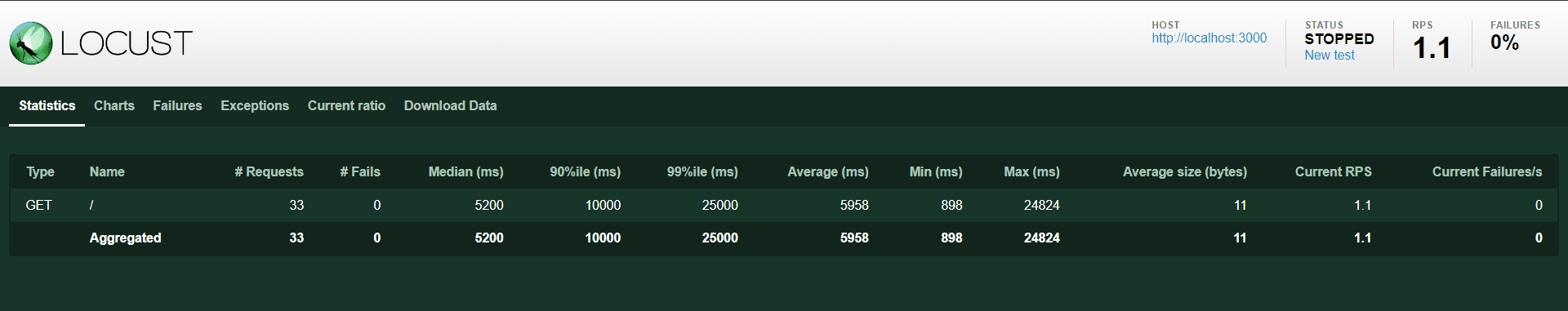

    On the UI, you are able to view live results, and once the test is completed or manually stopped, you can see a plethora of analysis.




    And many more tabs on the UI.

  • Command Line

    Locust can also be executed through the command line, perfect for creating automations around load testing, which is how it should actually be used.

    Run Command: locust -f 01.load-test.py --headless --users 50 --spawn-rate 10 --run-time 30s -H http://localhost:3000

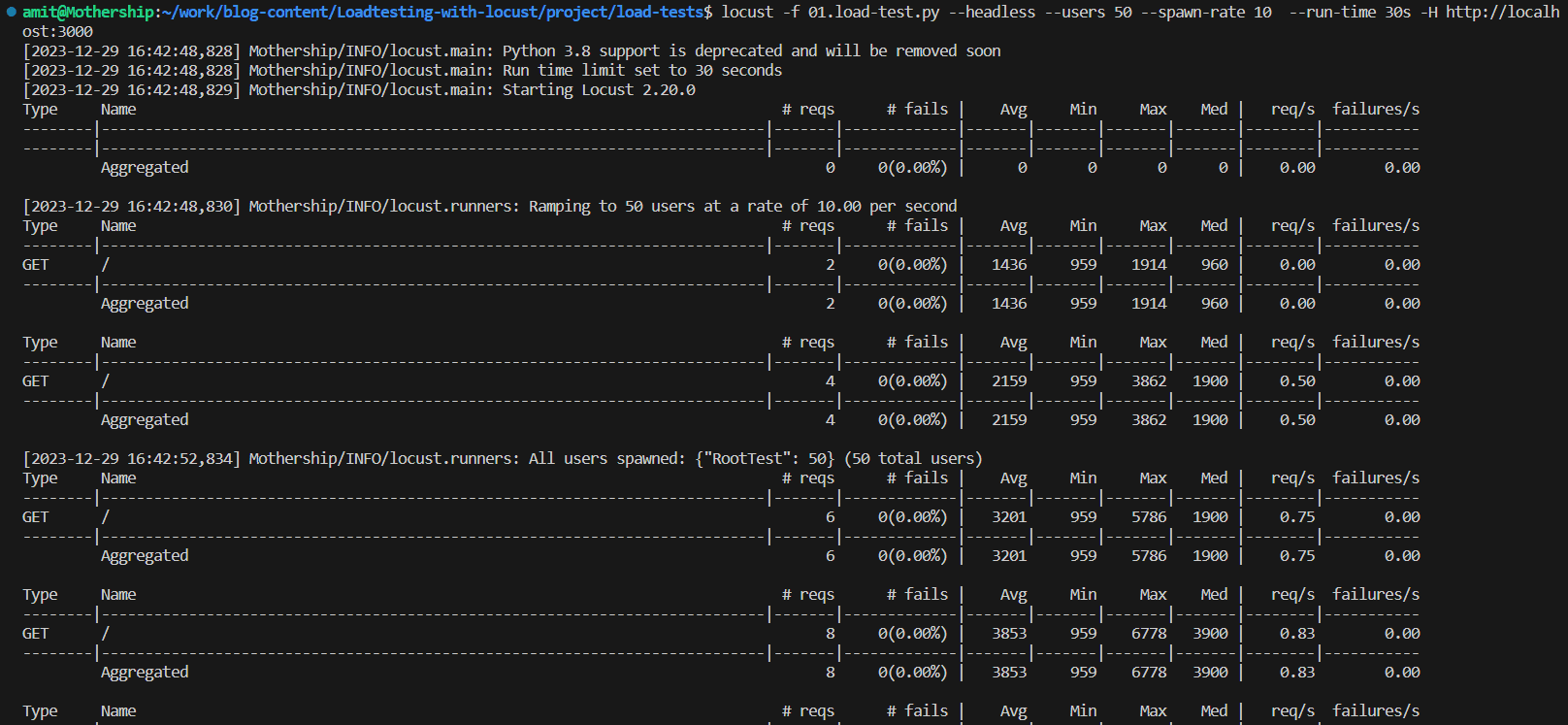

    As you can see, even in headless mode, it provides results through STDOUT.

    We can also create a Locust config file where we can set up things like host, runtime, spawn rate, etc., and use that file, e.g., locust -f 01.load-test.py --config lo.conf

    Try locust -h to view all available flags.

Advance

Getting it up and running is a pretty simple task, but nothing is simple in real life. Let's look at some advanced features that will definitely get used.

Some common concepts are covered in the file below; we'll go through the code now.

from locust import HttpUser, task, between, events
import time
from json import JSONDecodeError

@events.test_start.add_listener
def on_test_start(environment, **kwargs):
    print("Logging test start. Sending notification")

@events.test_stop.add_listener
def on_test_stop(environment, **kwargs):
    print("Logging test stop. Sending test report")

@task
def home(self):
    with self.client.get("/", catch_response=True, name="home-page") as response:
        if response.elapsed.total_seconds() > 1:
            response.failure("Request took too long")

@task
def view_products(self):
    for item_id in range(10):
        with self.client.get(f"/products?id={item_id}", catch_response=True, name="/products") as response:
            try:
                if response.json()["productId"] != str(item_id):
                    response.failure("Did not get expected value")
            except JSONDecodeError:
                response.failure("Response could not be decoded as JSON")
            except KeyError:
                response.failure("Response did not contain expected key 'greeting'")
            time.sleep(1)

class NormalUser(HttpUser):
    wait_time = between(1, 5)

    tasks = {home: 2, view_products: 1}

    def on_start(self):
        self.client.post("/signin", json={"username":"foo", "password":"bar"})

class WindowShopperUser(HttpUser):
    wait_time = between(1, 2)

    tasks = {home: 1, view_products: 3}

    def on_start(self):
        self.client.post("/signin", json={"username":"foo", "password":"bar"})

@events.test_start.add_listener
def on_test_start(environment, **kwargs):
  print("Logging test start. Sending notification")

We get event hooks like test_start and test_stop to perform any actions. We can also use events to add custom command line arguments.

@task
def home(self):
  with self.client.get("/", catch_response=True, name="home-page") as response:
      if response.elapsed.total_seconds() > 1:
          response.failure("Request took too long")

We can use catch_response to capture the result and perform things like throwing a custom error if the request took longer than our threshold.

@task
def view_products(self):
  for item_id in range(10):
      with self.client.get(f"/products?id={item_id}", catch_response=True, name="/products") as response:
          try:
              if response.json()["productId"] != str(item_id):
                  response.failure("Did not get expected value")
          except JSONDecodeError:
              response.failure("Response could not be decoded as JSON")
          except KeyError:
              response.failure("Response did not contain expected key 'greeting'")
          time.sleep(1)

Here, we have a dynamic URL where we are passing a value through string interpolation and exploring different ways to throw custom errors.

Sleep can be used to simulate a delay in behavior closer to an actual human user.

class NormalUser(HttpUser):
  wait_time = between(1, 5)

  tasks = {home: 2, view_products: 1}

  def on_start(self):
      self.client.post("/signin", json={"username":"foo", "password":"bar"})

This is a test suite, where wait_time defines a random duration in seconds after which an action will be performed. This would make the simulation closer to real-life activity.

We can run a specific suit at a time e.g, locust -f 02.load-test.py --config lo.conf NormalUser

The tasks dictionary holds the task names that we want to run as part of this particular suite. Along with the name of the task, we have a weight that will help us distribute the requests as we like among the tasks.

on_start runs once when the suite starts to perform pre-execution steps like logging in the user, etc.

For huge operations, Locust also provides us the setup for a master-slave architecture for distributed load generation. We create a master server and attach multiple worker servers to it, and we can use them to generate load. And nothing is complete nowadays without Docker, through which Locust works flawlessly.

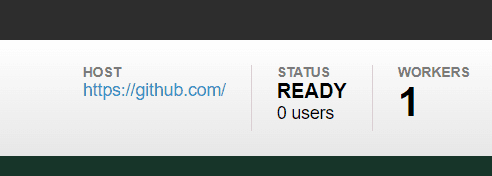

Below is a Docker Compose file that creates the distributed load generation setup easily with one master and one slave.

version: "3"

services:
  master:
    image: locustio/locust
    ports:
      - "8089:8089"
    volumes:
      - ./:/mnt/locust
    command: -f /mnt/locust/02.load-test.py --master -H https://github.com/

  worker:
    image: locustio/locust
    volumes:
      - ./:/mnt/locust
    command: -f /mnt/locust/02.load-test.py --worker --master-host master

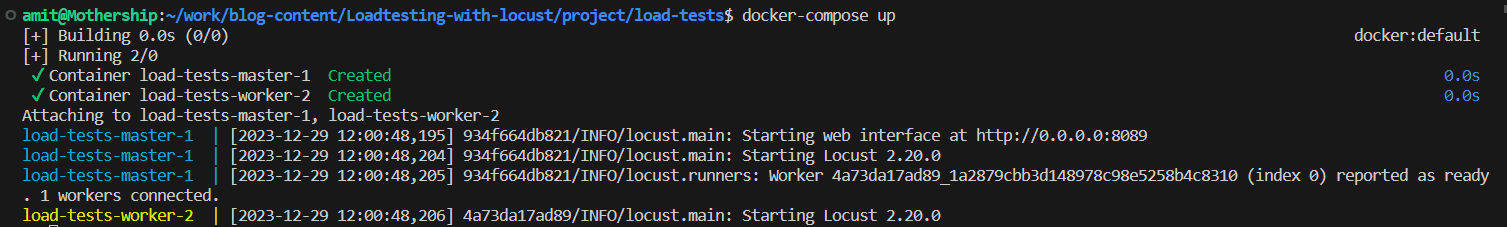

We just need to run docker-compose up, and things will fly. Truly, I have become a fan.

There are tons and tons of features, configurations, and options available for more advanced use cases. You can go through their documentation here.
