Introduction

A load balancer is a crucial component in modern network architecture, acting as an intermediary between clients and servers. It efficiently distributes incoming client requests across multiple servers, ensuring no single server becomes overwhelmed. This not only maintains application uptime but also enhances the overall user experience.

When implementing load balancing, it's essential to choose the appropriate type, which depends on the OSI model layer at which the load balancer operates. In this blog, we'll explore the differences between Layer 4 and Layer 7 load balancing by first revisiting the key functions of these layers in the OSI model.

For a deeper understanding of the OSI model, you can refer to this comprehensive guide by AWS.

• OSI Model Overview
• Layer 4: The Transport Layer
• Layer 7: The Application Layer
• When to Use Layer 4 vs. Layer 7 Load Balancing
• Layer 4 Load Balancing
• Layer 7 Load Balancing

OSI Model Overview

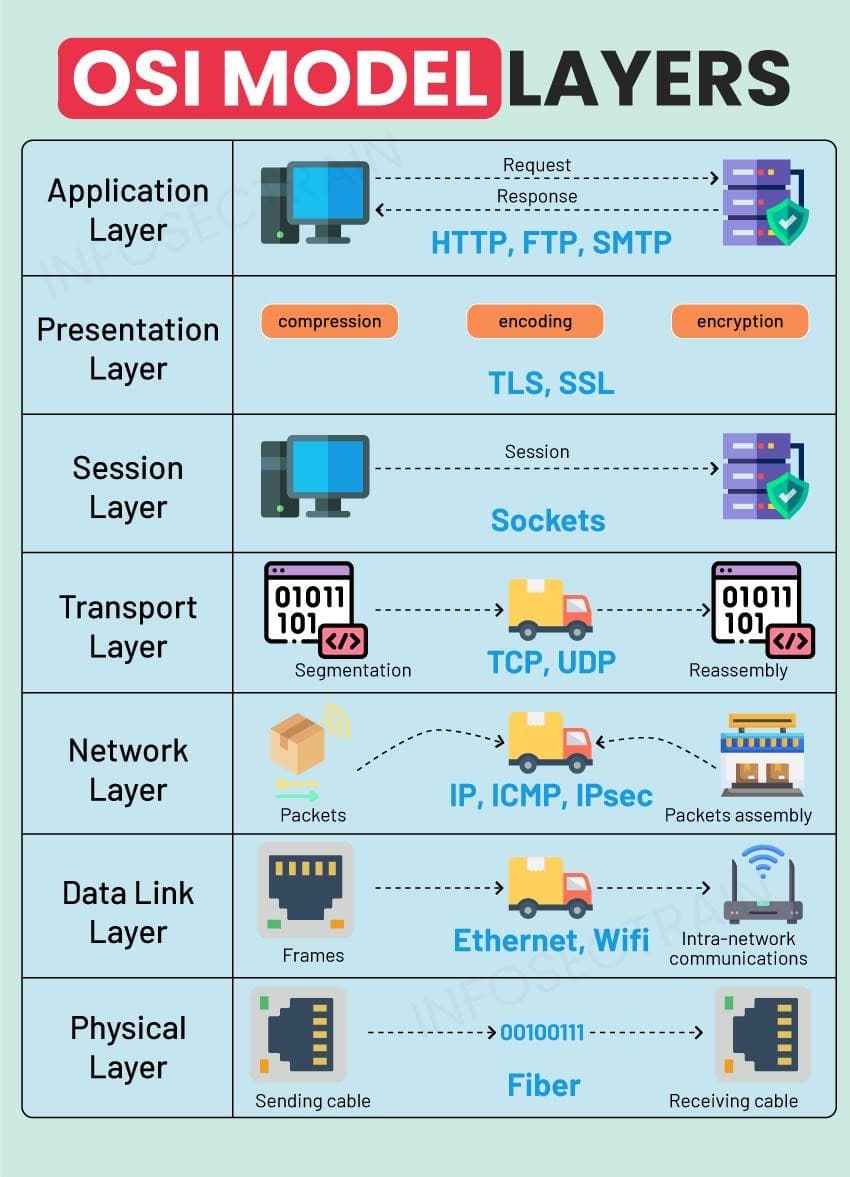

The OSI model is a seven-layer architecture, with each layer responsible for specific network functions. These layers work together to enable data transmission from one point to another across the globe. The OSI model provides a theoretical framework for understanding network communication, serving as the foundation for many networking technologies.

Layer 4: The Transport Layer

The Transport Layer is responsible for ensuring that data is transferred reliably, accurately, and efficiently between two endpoints.

• Key functions:
  • Segmentation and Reassembly: Breaking down large messages into smaller segments and reassembling them at the destination.
  • Error Detection and Correction: Ensuring data integrity by detecting and correcting errors that occur during transmission.
  • Connection Management: Establishing, maintaining, and terminating connections between devices.
• Common Protocols:
  • TCP (Transmission Control Protocol):

    TCP is a connection-oriented protocol known for its reliability. It guarantees the delivery of data in the correct order and is used in applications where data integrity is paramount, such as web browsing (HTTP/HTTPS), email (SMTP), and file transfers (FTP).

    Example: When you load a webpage, TCP ensures that all elements of the page are transmitted correctly and in order.

  • UDP (User Datagram Protocol):

    UDP is a connectionless protocol that prioritizes speed over reliability. It is used in applications where rapid transmission is more critical than ensuring every packet arrives, such as in streaming media, online gaming, and VoIP (Voice over IP).

    Example: Video streaming services often use UDP to allow faster data transmission, even if some packets are lost, to maintain real-time performance. In summary, TCP provides reliability at the cost of speed by establishing a connection before data transfer, while UDP offers greater speed by sending data without a connection, at the expense of reliability.

Layer 7: The Application Layer

The Application Layer is the topmost layer of the OSI model, responsible for providing network services directly to end-user applications. While it doesn't handle the actual data transfer, it provides the necessary protocols and tools for users to interact with the network.

• Key Functions:
  • Network Services: Facilitates file transfers, email, and network resource sharing.
  • Communication Management: Ensures that applications on different systems can communicate effectively by handling data formatting, presentation, encoding, encryption, and translation.
  • Resource Access Management: Manages access to network resources like files, printers, and databases, including handling remote access and ensuring secure communication through encryption standards and authentication mechanisms.
• Common Protocols:
  • HTTP/HTTPS (Hypertext Transfer Protocol / Secure):

    Used for transmitting web pages over the internet. HTTPS adds encryption to secure communication.

  • FTP (File Transfer Protocol):

    Facilitates the transfer of files between systems over a network.

  • SMTP (Simple Mail Transfer Protocol):

    Used for sending emails between servers.

  • DNS (Domain Name System):

    Translates human-readable domain names (like www.google.com) into IP addresses used by networking devices.

  • Telnet and SSH (Secure Shell):

    Provide command-line interface access to remote systems. SSH is a secure version of Telnet.

  • POP3/IMAP (Post Office Protocol 3 / Internet Message Access Protocol):

    Protocols used by email clients to retrieve messages from an email server.

When to Use Layer 4 vs. Layer 7 Load Balancing

Layer 4 Load Balancing

Layer 4 load balancing operates at the transport layer, directing traffic based on network details like application ports and protocols without inspecting the content of the messages.

This method is ideal for:

• High-Performance, Low-Latency Applications:

  Example: Real-time applications, like a stock trading platform, where minimizing latency is critical, benefit from Layer 4 load balancing as it forwards traffic quickly without content inspection.

• Simple, High-Volume Traffic:

  Example: A basic web application with a large number of requests but simple traffic patterns, such as a static content delivery network (CDN), can efficiently distribute the load across servers using Layer 4 without the overhead of deep packet inspection.

• Network-Level Routing Decisions:

  Example: Balancing traffic between data centers or geographically distributed servers based on IP addresses and ports is suited for Layer 4. For instance, a global online gaming service might route users to the nearest server based on their IP address.

• Secure Traffic Forwarding Without Decryption:

  Example: Applications requiring encrypted traffic to remain secure, such as VPN traffic, can use Layer 4 load balancing to route traffic without compromising security by avoiding decryption.

• Lower Resource Consumption:

  Example: IoT services with simple data packets, where server resources are limited, can benefit from Layer 4 load balancing as it consumes less CPU and memory compared to Layer 7.

Layer 7 Load Balancing

Layer 7 load balancing operates at the application layer, making decisions based on the content within each message.

It's suitable for:

• Content-Specific Routing:

  Example: E-commerce platforms where certain requests (e.g., product images vs. checkout processes) need to be handled by different servers. Layer 7 can route these requests based on the URL, content type, or HTTP headers.

• SSL Offloading and Security Inspections:

  Example: Web applications requiring SSL offloading and inspection, like a banking portal, benefit from Layer 7 load balancing. It can decrypt, inspect, and then re-encrypt traffic, ensuring performance and security.

• Session Persistence (Sticky Sessions):

  Example: Web applications needing session persistence, such as online shopping carts, where all requests from the same session must be routed to the same server, are well-served by Layer 7 load balancing.

• Application-Level Analytics and Optimization:

  Example: Media streaming services that need to optimize traffic based on content type, such as HD vs. standard video, can use Layer 7 to direct users to different servers optimized for different media formats.

• Microservices Architecture:

  Example: In microservices-based applications, where different services handle different parts of the application (e.g., authentication, user profiles), Layer 7 load balancing can route traffic based on specific API endpoints.

• Advanced Traffic Management:

  Example: SaaS platforms that need to route users based on geographical location, subscription level, or specific application features benefit from Layer 7 load balancing's ability to inspect and route traffic according to these criteria. Conclusion

Choosing between Layer 4 and Layer 7 load balancing depends on the specific needs of your application. Layer 4 is best for high-performance, low-latency environments where simplicity and speed are paramount. In contrast, Layer 7 is ideal for content-specific routing, session persistence, SSL offloading, and scenarios requiring deep packet inspection and advanced traffic management. Each layer offers unique benefits, and understanding them is key to optimizing your application's performance and user experience.
