Building Kubernetes Operator

Introduction

A Kubernetes Operator is a method of packaging, deploying, and managing a Kubernetes application. Operators extend Kubernetes' capabilities by automating the management of complex, stateful applications, such as databases or monitoring systems, using Kubernetes resources.

The operator watches for changes in Kubernetes resources (like deployments or services) and acts based on these changes. Operators use custom resources (CRDs) to manage the lifecycle of these applications, handling tasks such as installation, upgrades, backups, and scaling automatically.

BASIC KNOWLEDGE OF GO IS REQUIRED

Concepts
What are we building.
Lets get our hands dirty

Concepts

Custom Resources (CRs)
Custom Resources define the desired state of the application being managed by the operator. They extend the Kubernetes API by introducing new types of objects that are specific to your application. For example, if you're building an operator for a database, you might define a Database custom resource.
Custom Resource Definitions (CRDs)
CRDs are used to define the schema for the Custom Resources. They describe the structure and validation rules for your custom resource. When you create a CRD, Kubernetes understands the new object type and how to interact with it.
Operator Controller
The Operator's controller is the core component responsible for managing the lifecycle of your application. It watches for changes in the state of resources (such as the Custom Resources) and reacts by performing specific actions to bring the system back to the desired state. The controller runs as a Kubernetes pod and interacts with the Kubernetes API server.
Reconciliation Loop
The operator controller continuously watches for changes to the custom resources and executes the reconciliation process. This process involves comparing the current state of the application (actual state) with the desired state described in the CR, and performing the necessary actions (such as creating/deleting resources, scaling, or backing up data) to make the actual state match the desired state.

What are we building.

I have kept the requirements as simple as possible,

Our custom resource, DeploySyncer, will be designed to accept parameters such as RawFileUrl and intervalSeconds, and will be built using Kubebuilder. Every 60 seconds, it will check a deployments.yaml file in a public GitHub repository and apply the contents of that file to our Minikube Kubernetes cluster.

Lets get our hands dirty

Setup and Installation Prerequisites

Scaffolding the Operator Project

# create parent folder
mkdir deploysyncer-operator
cd deploysyncer-operator

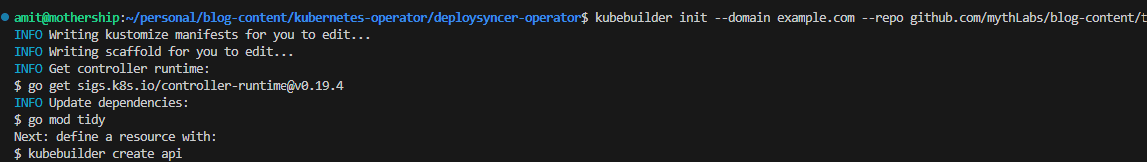

# Command to scaffold an Operator
kubebuilder init --domain example.com --repo github.com/mythLabs/blog-content/tree/main/kubernetes-operator/deploysyncer-operator

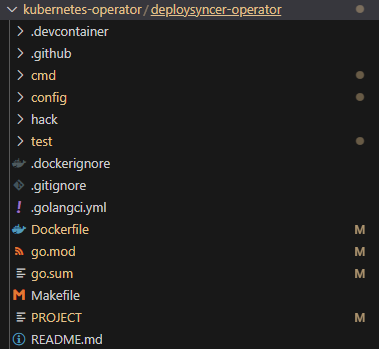

These are the scaffolded files

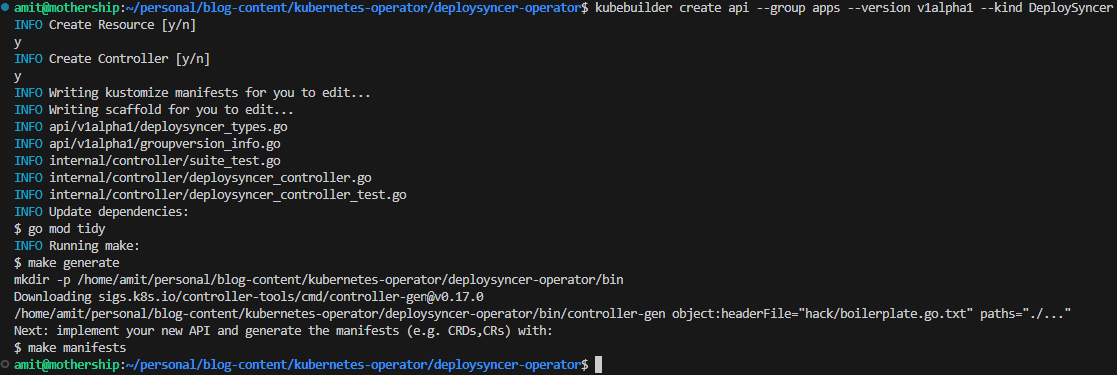

# Command to scaffold the CRD and controller
kubebuilder create api --group apps --version v1alpha1 --kind DeploySyncer

Define the Custom Resource's type: DeploySyncer

api/v1alpha1/deploysyncer_types.go

// Update the file generated by scaffolding with the required inputs and statuses needed by the custom resource.
.
.
.
// DeploySyncerSpec defines the desired state of the DeploySyncer custom resource
type DeploySyncerSpec struct {
    // RawFileUrl specifies the URL of the GitHub repository containing the deployment file
    RawFileUrl string `json:"RawFileUrl"`

    // IntervalSeconds defines the time interval (in seconds) at which the sync operation should occur
    IntervalSeconds int32 `json:"intervalSeconds"`
}

// DeploySyncerStatus represents the observed state of the DeploySyncer custom resource
type DeploySyncerStatus struct {
    // LastStatus stores the result of the last sync operation (e.g., "Success" or "Failure")
    LastStatus string `json:"lastStatus"`

    // LastSyncTime records the timestamp of the last successful sync operation
    LastSyncTime string `json:"lastSyncTime"`
}

.
.
.

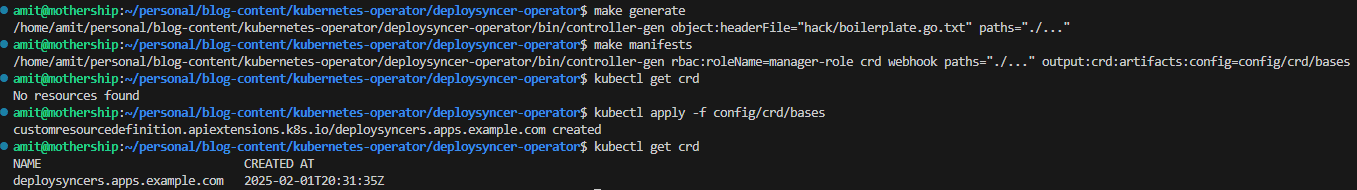

Generate the CRD and Manifests

# Generate CRDs from the typing defined in previous step.
make generate
make manifests

# Apply the CRDs to the cluster
kubectl apply -f config/crd/bases

Create the Controller Logic

Check the comments in the below code for an explanation.

internal/controller/deploysyncer_controller.go

package controller

import (
    "context"
    "fmt"
    "time"

    "github.com/go-resty/resty/v2" // HTTP client for fetching deployment YAML
    appsv1 "k8s.io/api/apps/v1" // Kubernetes Deployment API
    "k8s.io/apimachinery/pkg/runtime"
    ctrl "sigs.k8s.io/controller-runtime"
    "sigs.k8s.io/controller-runtime/pkg/client"
    "sigs.k8s.io/yaml" // Used for parsing YAML

    deploysyncerv1alpha1 "github.com/mythLabs/blog-content/tree/main/kubernetes-operator/deploysyncer-operator/api/v1alpha1"
)

// DeploySyncerReconciler is the controller that watches DeploySyncer CRs and manages Deployments
type DeploySyncerReconciler struct {
    client.Client // Kubernetes API client
    Scheme *runtime.Scheme // Scheme for working with Kubernetes objects
}

// Reconcile is the main function that gets triggered when a DeploySyncer resource is created/updated
func (r *DeploySyncerReconciler) Reconcile(ctx context.Context, req ctrl.Request) (ctrl.Result, error) {

    // Create an empty DeploySyncer object to store the CR details
    deploySyncer := &deploysyncerv1alpha1.DeploySyncer{}

    // Fetch the DeploySyncer resource from Kubernetes
    if err := r.Get(ctx, req.NamespacedName, deploySyncer); err != nil {
        return ctrl.Result{}, client.IgnoreNotFound(err) // Ignore if not found (deleted)
    }

    // Validate the required RawFileUrl field
    if deploySyncer.Spec.RawFileUrl == "" {
        deploySyncer.Status.LastStatus = "Missing file url"
        r.Status().Update(ctx, deploySyncer) // Update status to indicate failure
        return ctrl.Result{}, fmt.Errorf("Missing file url")
    }

    // Setup GitHub client to fetch the deployment YAML
    rustyClient := resty.New()

    // Fetch the YAML file from the provided URL
    resp, err := rustyClient.R().Get(deploySyncer.Spec.RawFileUrl)
    if err != nil {
        deploySyncer.Status.LastStatus = fmt.Sprintf("Failed to fetch: %v", err)
        r.Status().Update(ctx, deploySyncer)
        return ctrl.Result{RequeueAfter: time.Minute}, err // Retry after 1 minute
    }

    // Parse the fetched YAML into a Kubernetes Deployment object
    deployment := &appsv1.Deployment{}
    if err := yaml.Unmarshal(resp.Body(), deployment); err != nil {
        deploySyncer.Status.LastStatus = "Invalid YAML"
        r.Status().Update(ctx, deploySyncer)
        return ctrl.Result{}, err
    }

    // Check if the deployment already exists in the cluster
    err = r.Get(ctx, client.ObjectKey{Name: deployment.Name, Namespace: deployment.Namespace}, deployment)
    if err != nil && client.IgnoreNotFound(err) == nil {
        // Deployment does not exist, create a new one
        if err := r.Create(ctx, deployment); err != nil {
            deploySyncer.Status.LastStatus = fmt.Sprintf("Failed to create deployment: %v", err)
            r.Status().Update(ctx, deploySyncer)
            return ctrl.Result{}, err
        }
    } else if err == nil {
        // Deployment exists, update it with new configuration
        if err := r.Update(ctx, deployment); err != nil {
            deploySyncer.Status.LastStatus = fmt.Sprintf("Failed to update deployment: %v", err)
            r.Status().Update(ctx, deploySyncer)
            return ctrl.Result{}, err
        }
    } else {
        // Handle any other errors in fetching deployment
        deploySyncer.Status.LastStatus = fmt.Sprintf("Failed to fetch deployment: %v", err)
        r.Status().Update(ctx, deploySyncer)
        return ctrl.Result{}, err
    }

    // Successfully synced, update status with success message
    deploySyncer.Status.LastStatus = "Success"
    deploySyncer.Status.LastSyncTime = time.Now().Format(time.RFC3339)
    if err := r.Status().Update(ctx, deploySyncer); err != nil {
        return ctrl.Result{}, err
    }

    // Schedule next sync based on IntervalSeconds
    return ctrl.Result{RequeueAfter: time.Duration(deploySyncer.Spec.IntervalSeconds) * time.Second}, nil
}

// SetupWithManager registers the controller with the manager
func (r *DeploySyncerReconciler) SetupWithManager(mgr ctrl.Manager) error {
    return ctrl.NewControllerManagedBy(mgr).
        For(&deploysyncerv1alpha1.DeploySyncer{}). // Watch DeploySyncer CRs
        Owns(&appsv1.Deployment{}). // Also watch for changes in Deployments
        Complete(r) // Register the controller
}

Update the dependencies and permissions

config/rbac/role.yaml

# allow the service account used by operator to make changes to deployment type on the cluster
.
.
.
- apiGroups:
- apps  # Specifies that this rule applies to resources in the "apps" API group (which includes Deployments).

resources:
- deployments  # Grants permissions for "Deployment" resources in Kubernetes.

verbs:
- create  # Allows the creation of new Deployment resources.
- delete  # Allows the deletion of existing Deployment resources.
- get     # Allows retrieving details of a specific Deployment.
- list    # Allows listing all Deployments in the namespace or cluster.
- patch   # Allows making partial updates to an existing Deployment.
- update  # Allows fully updating an existing Deployment.
- watch   # Allows monitoring changes to Deployments in real-time.

# install the go-resty rest api client to fetch deployment from github
go get github.com/go-resty/resty/v2

At this stage, Push the code generate till now to github as its used as a module while building the controller.

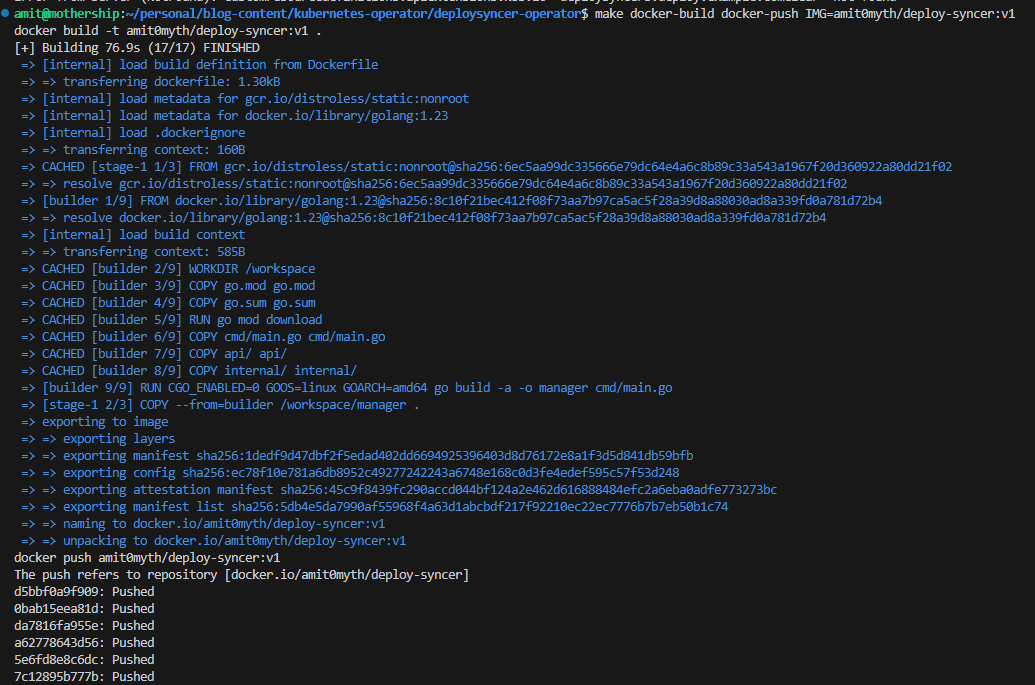

Build and Deploy the Operator

# build and publish the docker image
make docker-build docker-push IMG=<your-image-name>

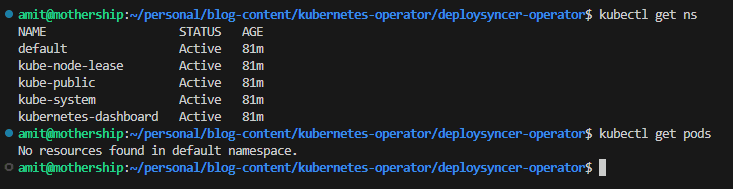

We can see a vanilla installation.

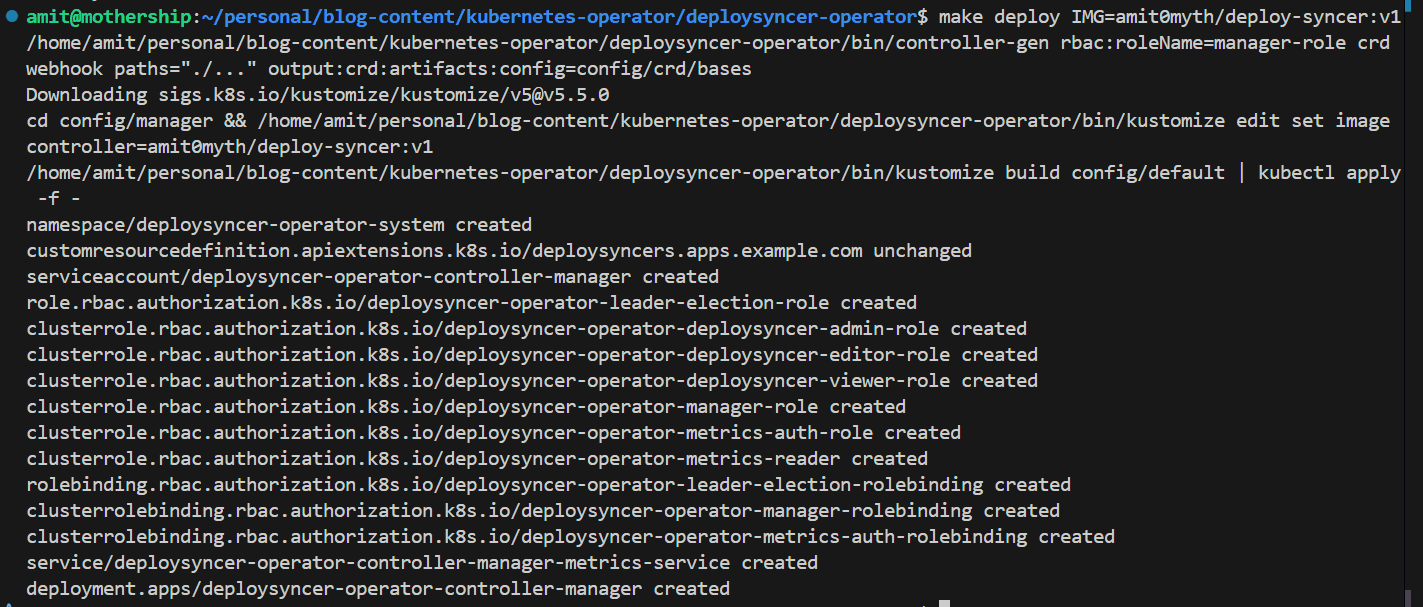

Deploy the Operator to your Kubernetes cluster
```
# run provided make deploy
make deploy IMG=<your-image-name>
```

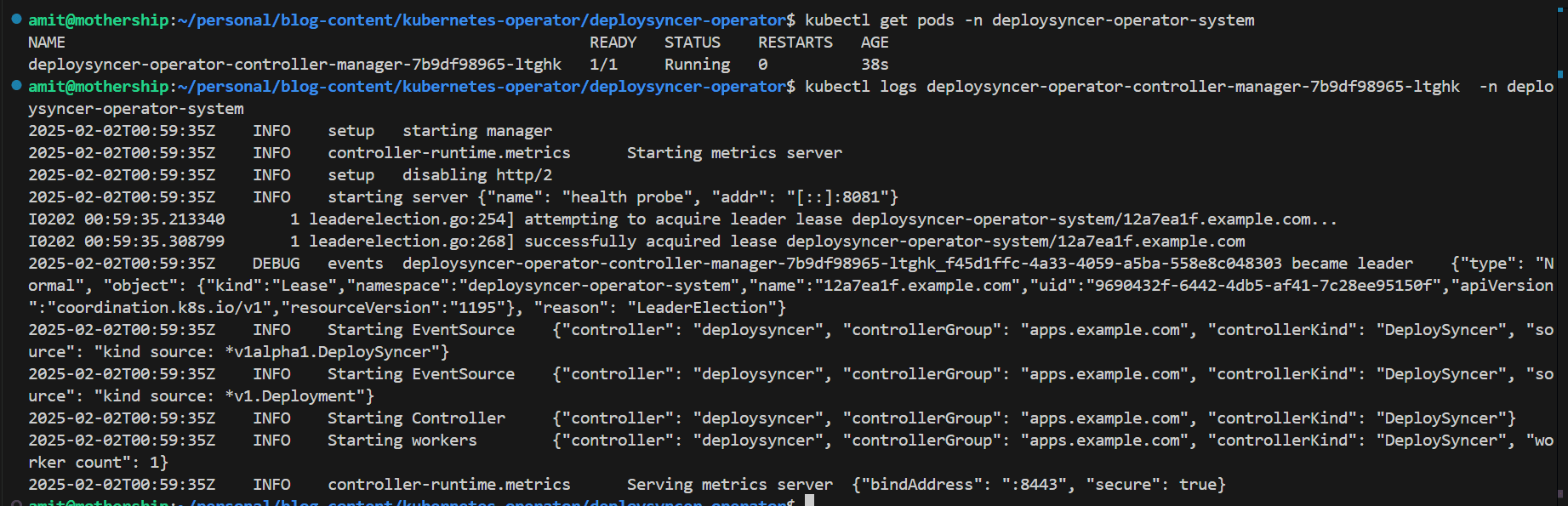

The operator is up and running

Create the DeploySyncer Custom Resource

deploysyncer.yaml

    apiVersion: apps.example.com/v1alpha1
    kind: DeploySyncer
    metadata:
        name: nginx-deploysyncer
        namespace: deploysyncer-operator-system # same namespace where the operator pod is running
    spec:
        intervalSeconds: 60
        RawFileUrl: https://raw.githubusercontent.com/mythLabs/blog-content/refs/heads/main/kubernetes-operator-app/deployments.yaml

# create custom resource using remote file
kubectl apply -f https://raw.githubusercontent.com/mythLabs/blog-content/refs/heads/main/kubernetes-operator-app/deploysyncer.yaml

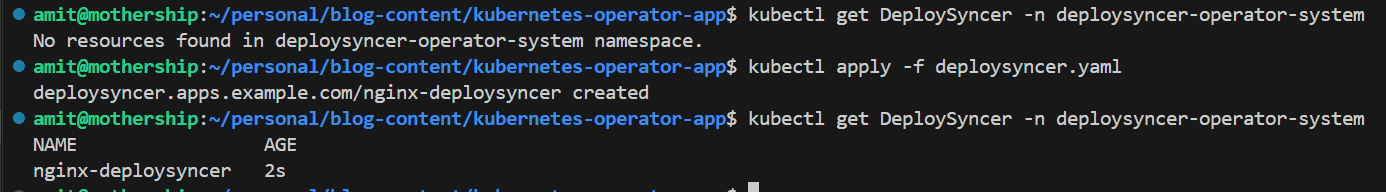

We can see a custom type DeploySyncer, and it will create and update the deployment from remote repo

Publishing

For alpha testing

docker tag <local-image> <username>/<repo>:<tag>
docker push <username>/<repo>:<tag>
kubectl apply -f https://raw.githubusercontent.com/mythLabs/blog-content/refs/heads/main/kubernetes-operator/deploysyncer-operator/config/crd/bases/

For beta testing and release
We will need to create a Helm chart with these CRDs, publish it, and the operator image will be in a public or private registry based on the requirement.

Thanks for reading!
